• available in step-switchable(DWA 5000) or stageless adjustable (DWA 5000 EK - electronically commutated) completion.

• the systems are working fully automated with thermostat-controller or with the Doll comfort-system, discharging surplus heat to the outside in summer time.

• serially equipped with an insect screen.

• weather protective grid with automatically and stagless opening fins.

• wall mounting unit and casing made of stainless-steel

• wall plate in standardised or special measurements available depending on building construction.

•  intake and exhaust protective-grid on the intake-side in the building quipped as standard

• motor protected from humidity and dust

• only low measurements required for installation depth

• high performance discharging capacity at lowest acoustic emissions and energy consumption

• air-throughput up to 5000 m³ /h

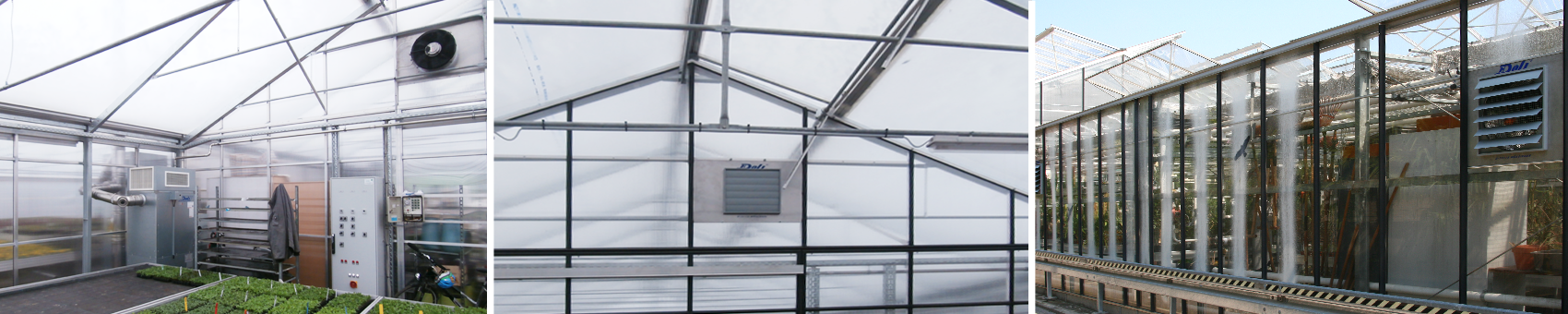

The robust and durable DWA systems are mounted very quickly and easily via the serially equipped wall-mounting plate and create a significantly comfortable climate in buildings. Plants, employees or customers in sale rooms are protected from overcharged temperatures. For a fully automatic operation the standard version devices are either equipped with a step-switchable motor with 5-step switch and thermostat or alternatively with a stageless adjustable motor in 0-10 voltage controller with the Doll comfort system.

Both systems are working highly energy saving trough the use of efficient motor design and are reliable and free of maintenance.
